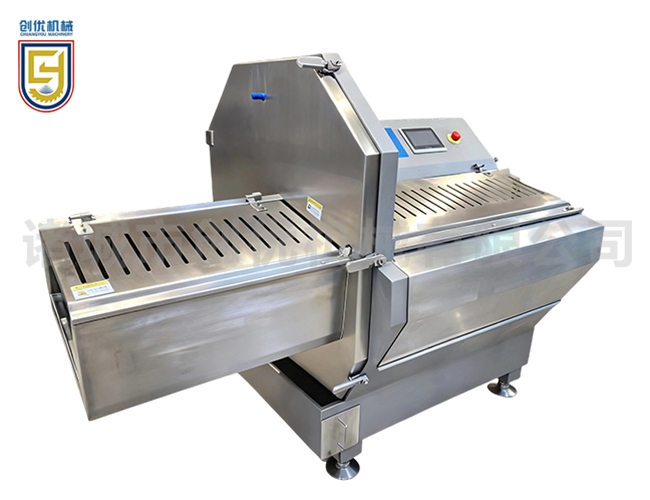

Equipment Introduction

The equipment features an oversized feed bin design with high-precision control. It is suitable for both large and small pieces of raw materials. It uses screw rod control to cut ultra-thin products, improving the accuracy of slicing and enhancing stability. It uses original German imported blades, which can maintain better slicing results for a long time.
The AC servo control system can be freely adjusted. The slicing speed is controlled segmentally by the frequency converter to ensure the quality and efficiency of the processed products.
Safety sensors are installed. When the outer guard of the blade, the raw material input port, the discharge port guard, and the meat waste box are opened, the power supply will be automatically cut off and the operation stop device will be activated to ensure operational safety.

Equipment parameters

ASTOR cutting tools imported from Germany with original packaging

German brand Nord motor reducer

Schneider contactors/Omron relays/Schneider circuit breakers

Korean synchronous belt/Taiwan tbi screw/NSK bearing

Huichuan touch screen/Mitsubishi servo motor, PLC/Mitsubishi servo drive

Dimensions: Length 1920 * Width 1180 * Height 1500

Weight: 1000kg

Power: 5kw

Cutting thickness: 0.5mm-30mm

Adjustable cutting speed: 160-220-280-320 pieces/minute, adjustable.

Maximum feed cross-section: 360 * 200

Maximum feed size: 670 in length

Application scenarios

•

  Snowflake chicken cutlet

•

  Loin steak slices

•

  Oulon Chest Plate

•

  70-80 Leg Row
